ELITE SERIES

Excellent Lighting and High Performance

Elite Series operating lights provide solutions with various head models and mounting styles. Elite series models can provide 160,000 lux illumination with minimum power consumption by means of their high energy efficiency.

SHADOWLESS LIGHT

Ergonomic head design feature that minimizes the shadowing of the head or shoulders of the surgical personnel in the operation area.

DUCOP – DOUBLE SIDED CONTROL PANEL

Without changing the location of the operating room teams, enables bilateral use of the surgical light control panel from the operation area or outside.

INTERNAL & EXTERNAL ENDOSCOPIC MODE

External and internal endoscopy mode for comfortable lighting during closed surgical operations such as endoscopy and laparoscopy.

UHD/FULL HD CAMERA INTEGRATION

Uninterrupted image transfer to all imaging devices is provided for the purpose of consulting and training of surgical images of 3840x2160 or 1920x1080 high resolution.

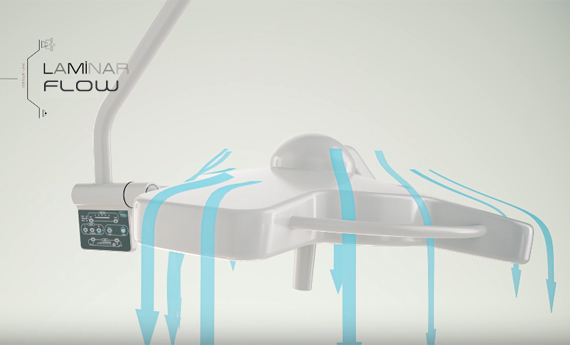

LAMINAR FLOW

Lighting head design provides ideal laminar airflow to manage air turbulence to minimize bacterial contamination.

UNINTERRUPTED LIGHTING

In case of failure in any LED / module, other LED / modules continue to work for uninterrupted lighting.

HIGH CRI VALUE: SEE THE TISSUES IN THE REAL COLOR

Due to its high CRI value, it is possible to see the operation area in true color tone and to examine the tissues and organs to the finest details.

THE LATEST TECHNOLOGY LED CHIP

LED chip technology that provides a minimum life of 60,000 hours, regardless of color and light intensity use.

LOW POWER CONSUMPTION

Due to the fresnel structure used, the light loss is minimized and all power is focused on the lighting area.

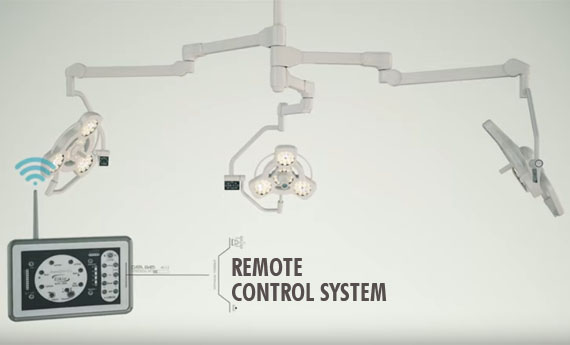

REMOTE CONTROL SYSTEM

Lighting systems can be controlled from outside the operation area with a Wall Control Panel, Remote Control and a mobile tablet. All titles can be managed synchronously from a single control panel or can be adjusted separately.

VIBRATION-FREE LIGHTING

Ability to adjust flicker-free light without any change in color.

STABLE AND UNCHANGING LIGHTING

Consistent light output throughout the process. Changes in light intensity are automatically compensated even in long-term cases, ensuring an efficient operation.

CAMERA: PERFECT IMAGE AND WIRELESS TRANSMISSION

With Wireless Camera feature, it combines existing Full HD and Ultra HD camera technology with the advantages of encrypted and wireless communication.

HIGH LEVEL DESIGN: ENVIRONMENTALLY FRIENDLY-USER FRIENDLY-ERGONOMIC

High quality components, innovative design and successful engineering are integrated in all products for superior lighting and long-lasting high performance. Contributes to the laminar flow on the surgical field with its smooth surface, compact size and design.

WIRELESS CAMERA AND CAMERA INFRASTRUCTURE

With its wireless camera infrastructure and camera technology, it is ready to use without the need for assembly in the installation and removal of the camera. Camera and camera infrastructure operating lights can be equipped with sterilizable handles.

IP54 PROTECTION

Lighting heads are protected against dust and liquid at IP54 level.

Model

Elite

Type

Led

Illumination

130.000 lux - 160.000 lux

Illumination Steps

20%-100% In 10 Levels *-From Touch Panel

Color Temperature (K)

3.500K - 5.000 K In 5 Levels *-From Touch Panel

Light Head Diameter

65 cm

Light Head Material

Aluminum, Antibacterial (Smooth surfaces, Curved Corners)

Focusing Type

From Handle/Motorized

Spot Diameter

11-18 cm

Nr. of LEDs

58 LED

LED Life

>60.000 hours

CRI Ra

> 96

CRI R9

> 97

Lighting Depth (L1+L2)-%20

> 110 cm

Temperature change for surgeon

< 1 0C

Temperature change in operating environment

< 1 0C

Power Consumption

42 W

Laminar Flow

Yes

Dust and Water Proof

Yes, IP54

Radian Energy

< 3,5 mW/m² Lux

Endoscopy Mode

Yes

ACCESSORIES & OPTIONAL FEATURES

Sterilizable HandleYes. Can be sterilized in autoclave at 134 °C
BatteryOptional - 4 hours / 8 hours
Medical CameraOptional - Ultra HD(4K) / Full HD / HD
Camera InfrastructureOptional - Ultra HD(4K) / Full HD / HD
Wireless Image TransferOptional
Auto Focus + Motorized SpotOptional
Double Sided Control Panel  Optional
External Endoscopy ModeOptional
Medical MonitorOptional - Ultra HD(4K) / Full HD / HD
RecorderOptional - USB 3.0 PC / Medical
SynchronizationOptional
Wired / Wireless Wall PanelOptional
Remote ControlOptional

UHD
Camera



FULL HD
Camera

Sterilizable Camera Cover

DUCOP – Double Sided Control Panel

Sterilizable
Handle

Sterilizable
Handle

Wireless/Wired Control Panel



Disposable Handle Cover

Recorder

Converter
SDI to HDMI

Medical
Monitor
