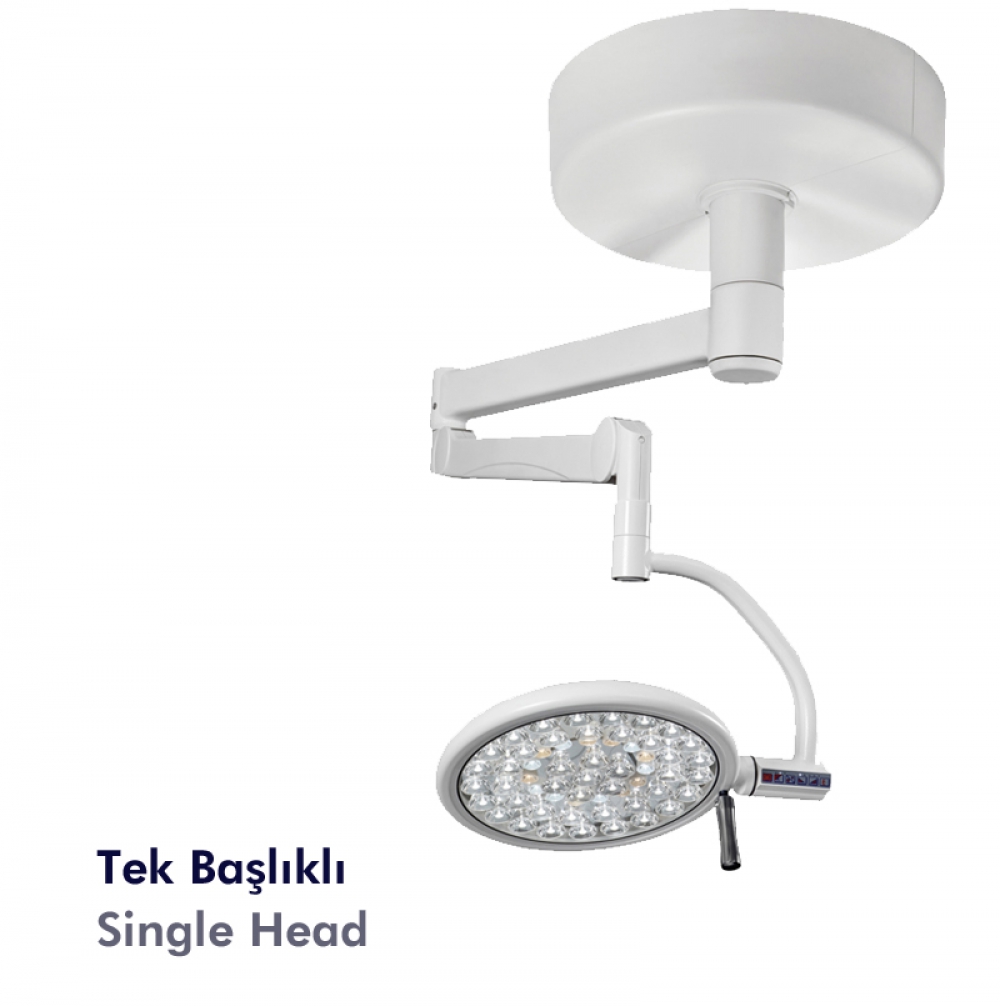

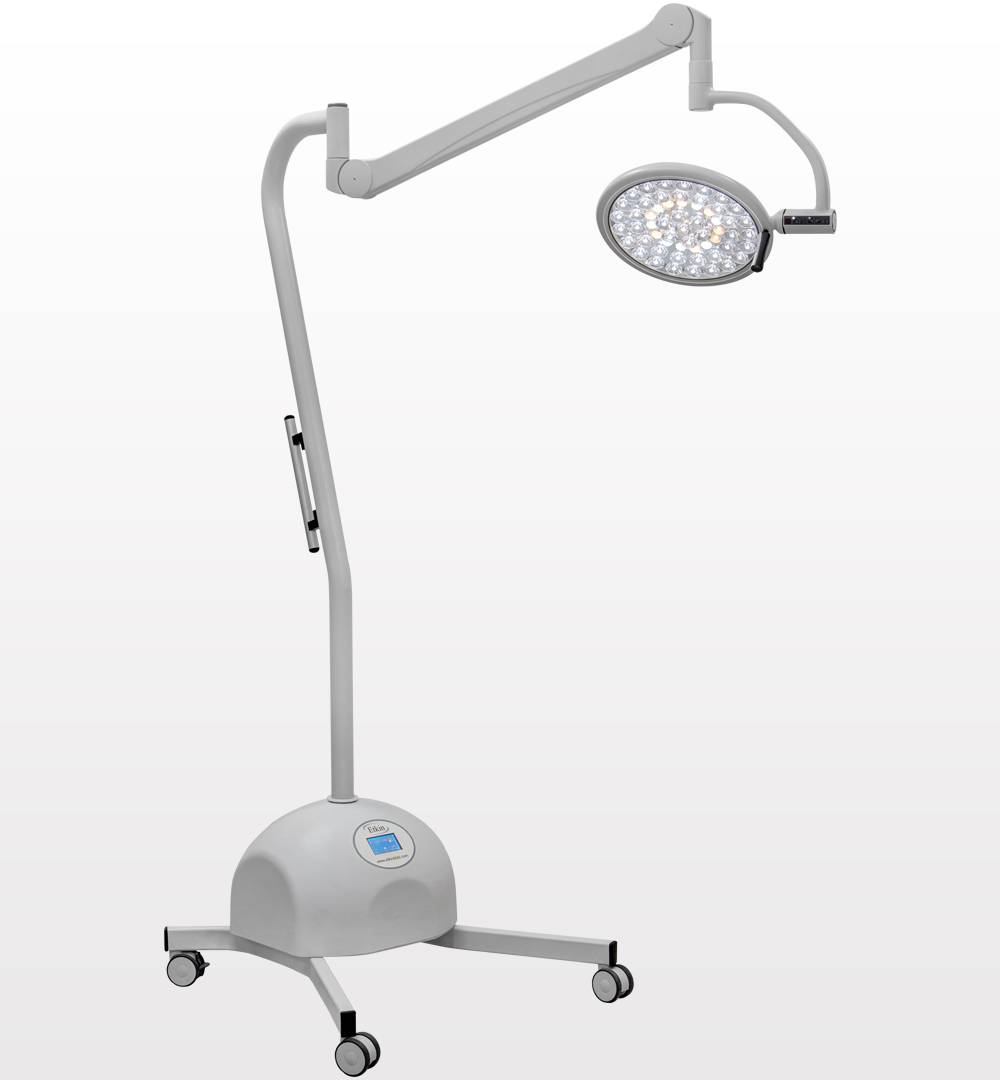

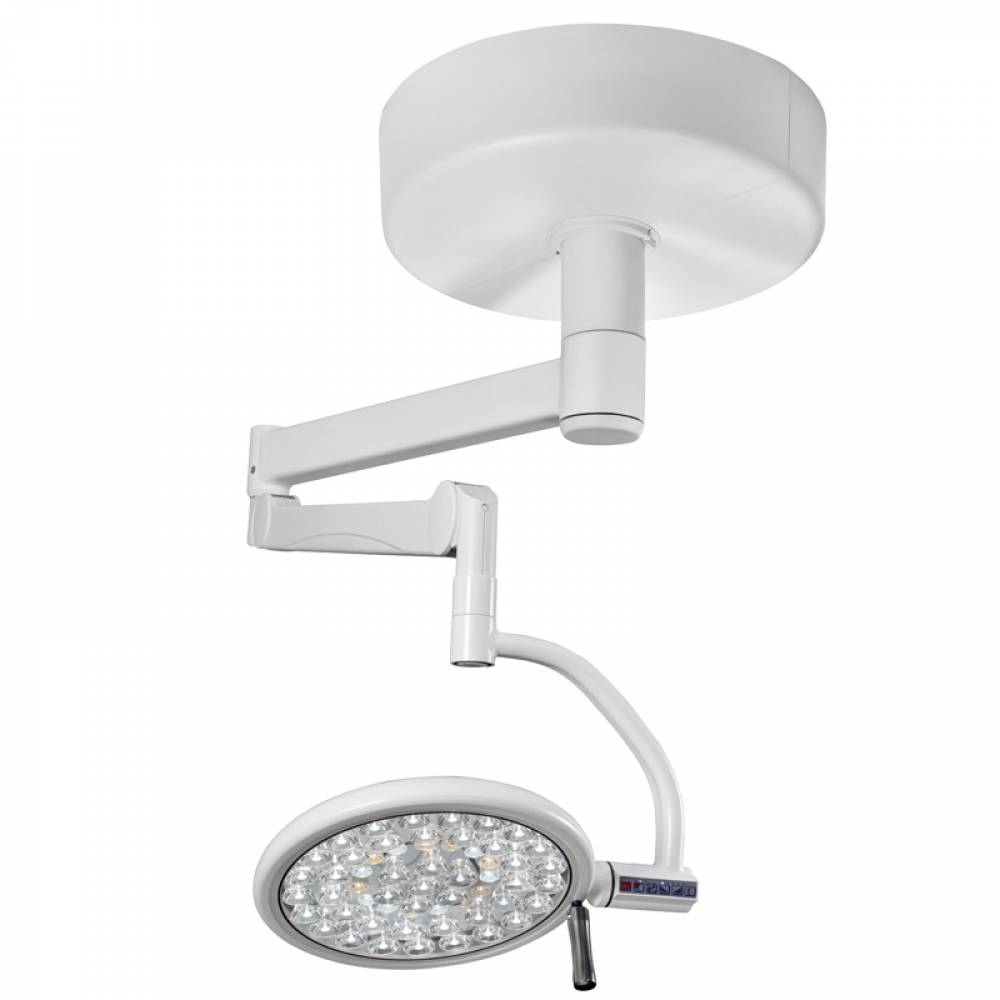

ANKA+ SERIES
COMPACT OPERATION LIGHTS

Excellent Performance in Small and Critical Surgeries

Anka+ Series small surgical lights are compact surgical lights that provide lighting levels of 100.000 lux, 110.000 lux and 120.000 lux.

STABLE AND UNCHANGING LIGHTING

Consistent light output throughout the process. Changes in light intensity are automatically compensated even in long-term cases, ensuring an efficient operation.

HIGH LEVEL DESIGN: ENVIRONMENTALLY FRIENDLY-USER FRIENDLY-ERGONOMIC

High quality components, innovative design and successful engineering are integrated in all products for superior lighting and long-lasting high performance. Contributes to the laminar flow on the surgical field with its smooth surface, compact size and design.

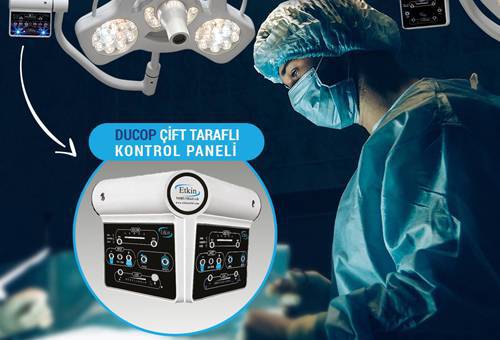

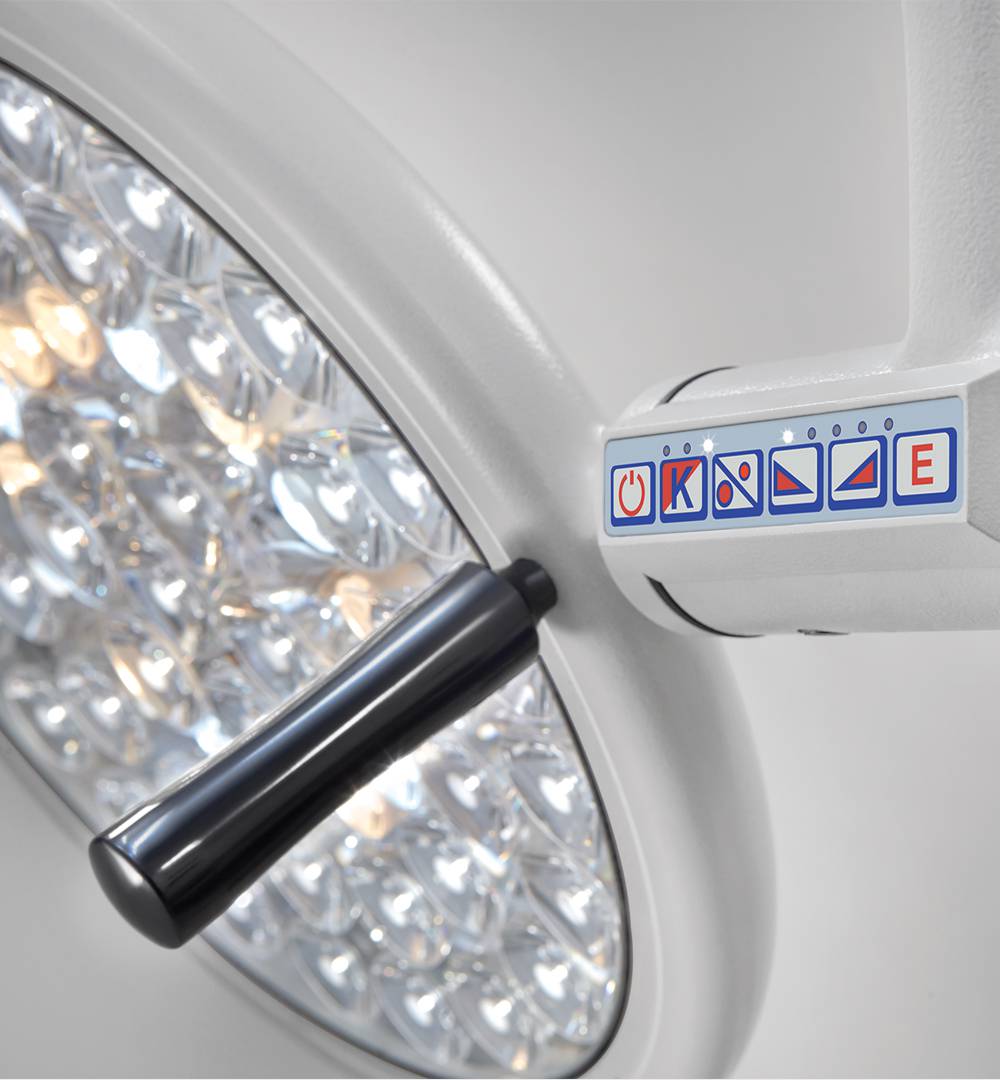

DUCOP – DOUBLE SIDED CONTROL PANEL

Without changing the location of the operating room teams, enables bilateral use of the surgical light control panel from the operation area or outside.

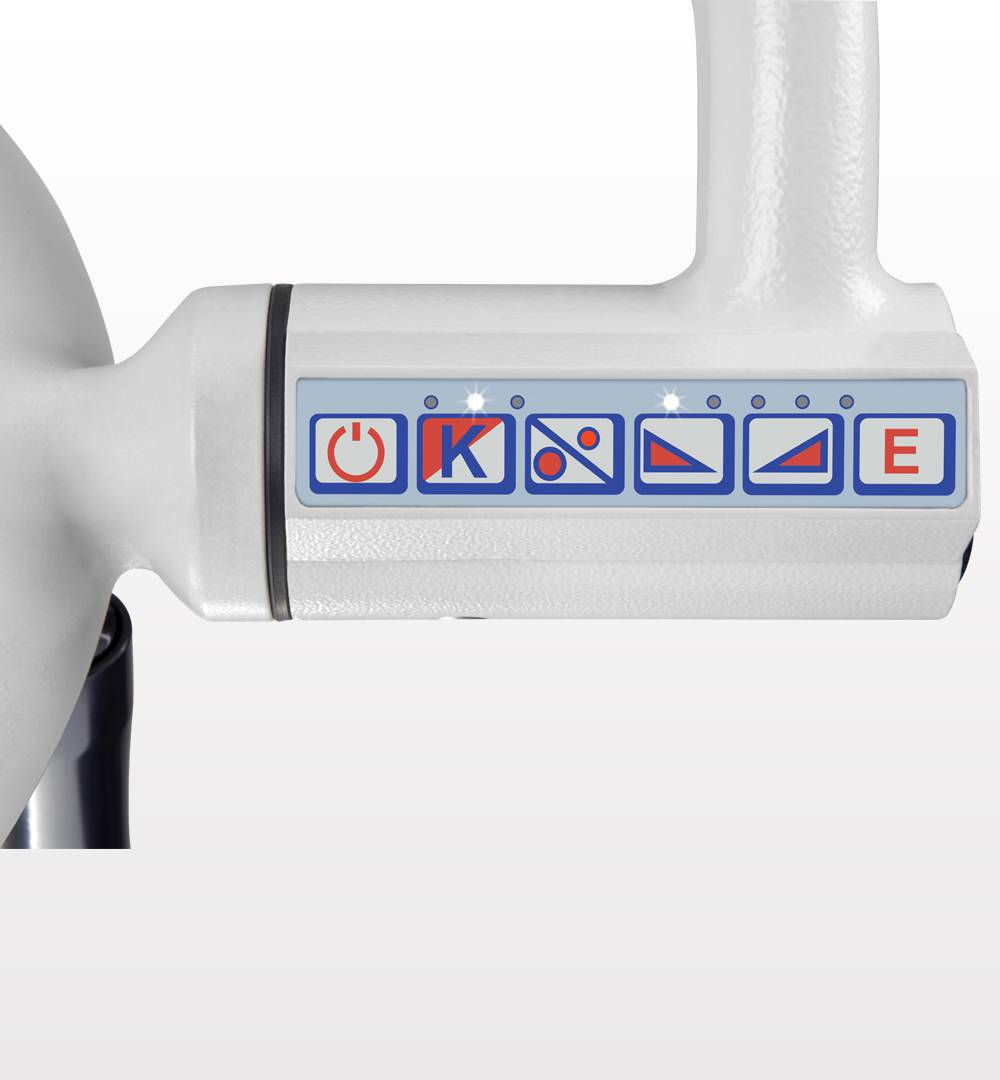

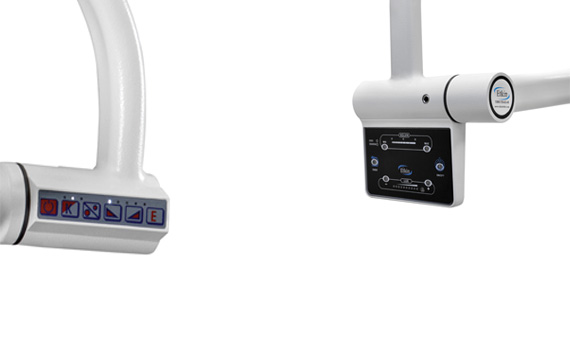

VARIOUS CONTROL PANEL OPTIONS

Provides the use of 2 different unique control panel options according to users' expectations.

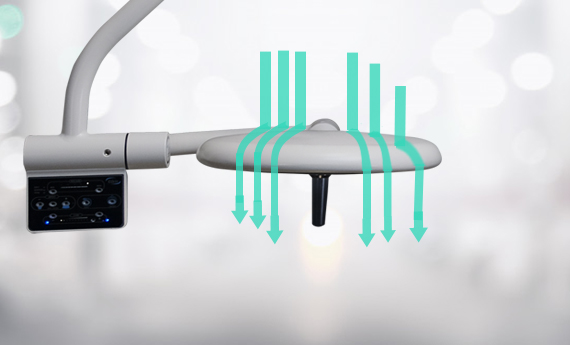

LAMINAR FLOW

Lighting head design provides ideal laminar airflow to manage air turbulence to minimize bacterial contamination.

UNINTERRUPTED LIGHTING

In case of failure in any LED / module, other LED / modules continue to work for uninterrupted lighting.

HIGH CRI VALUE: SEE THE TISSUES IN THE REAL COLOR

Due to its high CRI value, it is possible to see the operation area in true color tone and to examine the tissues and organs to the finest details.

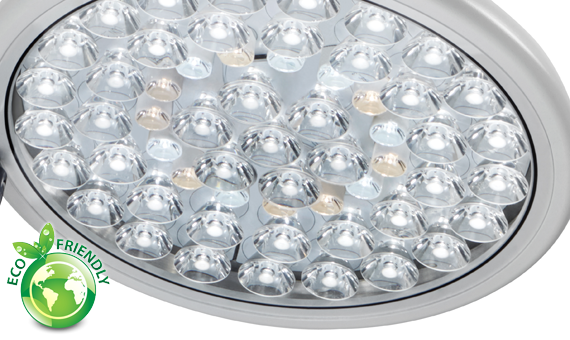

THE LATEST TECHNOLOGY LED CHIP

LED chip technology that provides a minimum life of 60,000 hours, regardless of color and light intensity use.

LOW POWER CONSUMPTION

Due to the fresnel structure used, the light loss is minimized and all power is focused on the lighting area.

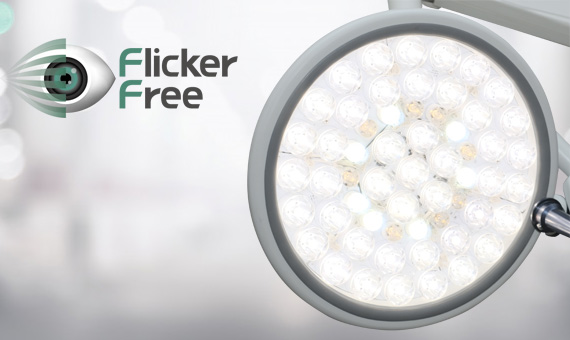

VIBRATION-FREE LIGHTING

Ability to adjust flicker-free light without any change in color.

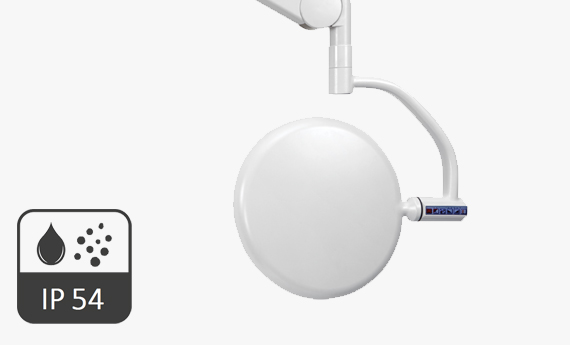

IP54 PROTECTION

Lighting heads are protected against dust and liquid at IP54 level.

Model

Anka+

Type

Led

Illumination

100.000 lux - 160.000 lux (1m)

Illumination Steps

20%-100% In 10 Levels *-From Touch Panel

Color Temperature (K)

3.500K - 5.000 K In 5 Levels *-From Touch Panel

Light Head Diameter

37 cm

Light Head Material

Aluminum, Antibacterial (Smooth surfaces, Curved Corners)

Focusing Type

From Touch Pnale - Electronic

Spot Diameter

19-31 cm

Nr. of LEDs

54 LED

LED Life

>60.000 hours

CRI Ra

> 96

CRI R9

> 97

Lighting Depth (L1+L2)-%20

> 203 cm

Temperature change for surgeon

< 1 0C

Temperature change in operating environment

< 1 0C

Power Consumption

58 W

Laminar Flow

Yes

Dust and Water Proof

Yes, IP54

Radian Energy

< 3,5 mW/m² Lux

Endoscopy Mode

Yes

ACCESSORIES & OPTIONAL FEATURES

Sterilizable HandleYes. Can be sterilized in autoclave at 134 °C
BatteryOptional - 4 hours / 8 hours
Double Sided Control Panel Optional
External Endoscopy ModeOptional
SynchronizationOptional

DUCOP – Double Sided Control Panel

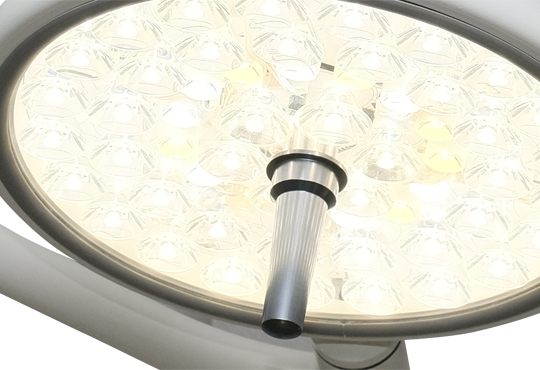

Sterilizable
Handle

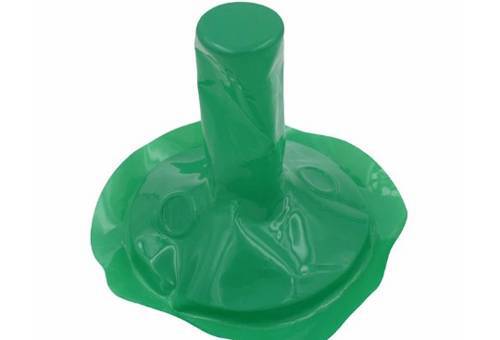

Disposable Handle Cover
