MASTER SERIES
SURGICAL LIGHTS

Optimal Lighting for Perfect Working Conditions

Master Series operating lights provide solutions with various head models and mounting styles. Master series models, designed to provide maximum light intensity in all spot diameters, have electronic spot adjustment.

SHADOWLESS LIGHT

Ergonomic head design feature that minimizes the shadowing of the head or shoulders of the surgical personnel in the operation area.

DUCOP – DOUBLE SIDED CONTROL PANEL

Without changing the location of the operating room teams, enables bilateral use of the surgical light control panel from the operation area or outside.

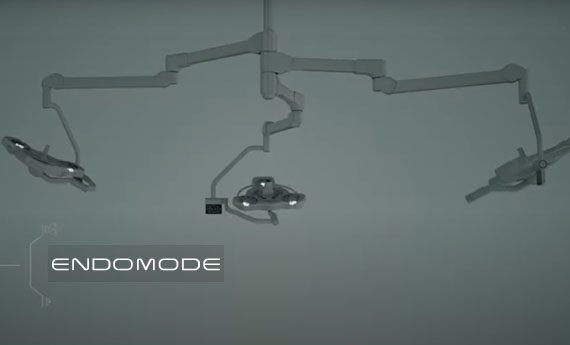

INTERNAL & EXTERNAL ENDOSCOPIC MODE

External and internal endoscopy mode for comfortable lighting during closed surgical operations such as endoscopy and laparoscopy.

UHD/FULL HD CAMERA INTEGRATION

Uninterrupted image transfer to all imaging devices is provided for the purpose of consulting and training of surgical images of 3840x2160 or 1920x1080 high resolution.

LAMINAR FLOW

Lighting head design provides ideal laminar airflow to manage air turbulence to minimize bacterial contamination.

UNINTERRUPTED LIGHTING

In case of failure in any LED / module, other LED / modules continue to work for uninterrupted lighting.

HIGH CRI VALUE: SEE THE TISSUES IN THE REAL COLOR

Due to its high CRI value, it is possible to see the operation area in true color tone and to examine the tissues and organs to the finest details.

THE LATEST TECHNOLOGY LED CHIP

LED chip technology that provides a minimum life of 60,000 hours, regardless of color and light intensity use.

REMOTE CONTROL SYSTEM

Lighting systems can be controlled from outside the operation area with a Wall Control Panel, Remote Control and a mobile tablet. All titles can be managed synchronously from a single control panel or can be adjusted separately.

VIBRATION-FREE LIGHTING

Ability to adjust flicker-free light without any change in color.

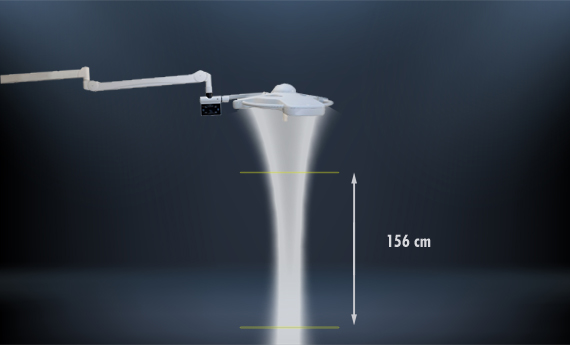

HIGH LIGHTING DEPTH

In addition to electronically adjustable spot, providing high illumination depth supported by mechanical movements.

STABLE AND UNCHANGING LIGHTING

Consistent light output throughout the process. Changes in light intensity are automatically compensated even in long-term cases, ensuring an efficient operation.

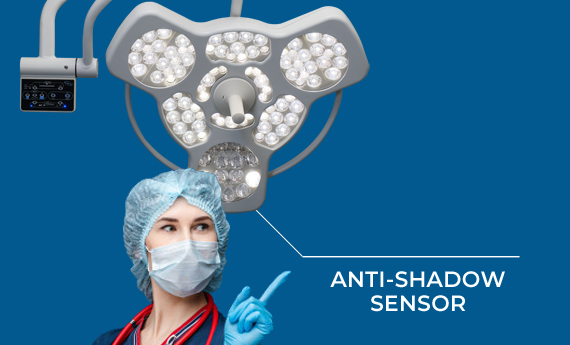

ANTI-SHADOW SENSOR: LIGHTING WITHOUT DIFFICULT SHADOWS

The obstacles that will affect the illumination efficiency between the operating light and the operation area are detected by the sensors and loss of shadow formation and light intensity is prevented. By courtesy of smart control of the LED modules, a consistent illuminated area is provided.

CAMERA: PERFECT IMAGE AND WIRELESS TRANSMISSION

With Wireless Camera feature, it combines existing Full HD and Ultra HD camera technology with the advantages of encrypted and wireless communication.

HIGH LEVEL DESIGN: ENVIRONMENTALLY FRIENDLY-USER FRIENDLY-ERGONOMIC

High quality components, innovative design and successful engineering are integrated in all products for superior lighting and long-lasting high performance. Contributes to the laminar flow on the surgical field with its smooth surface, compact size and design.

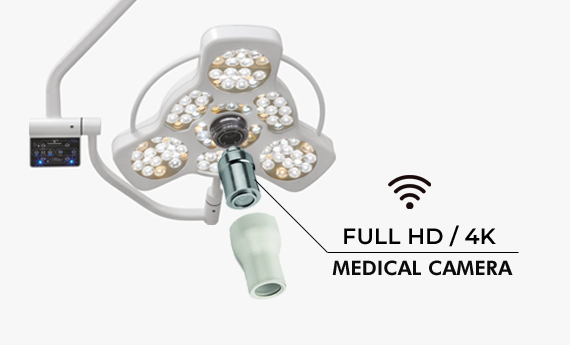

WIRELESS CAMERA AND CAMERA INFRASTRUCTURE

With its wireless camera infrastructure and camera technology, it is ready to use without the need for assembly in the installation and removal of the camera. Camera and camera infrastructure operating lights can be equipped with sterilizable handles.

IP54 PROTECTION

Lighting heads are protected against dust and liquid at IP54 level.

Model

Master

Type

Led

Illumination

130.000 lux / 160.000 lux (1m)

Illumination Steps

In 10 steps

Color Temperature (K)

3.500K -  5.000 K

Light head Diameter

65 cm

Light head Material

Aluminum

Focusing Type

From Handle and Touch Panel-Electronic

Spot Diameter

16-30 cm

Led Life

>60.000 hour

CRI Ra

> 96

CRI R9

> 97

Temperature change for surgeon

< 1 0C

Temperature change in operating environment

< 1 0C

Laminar Flow

Compatible

Dust and Water Proof

 IP54

Endoscopy Mode

YES

Camera

Optional

Wireless Wall Control Panel

Optional

Double Sided Control Panel

Optional

UHD
Camera



FULL HD
Camera

Sterilizable Camera Cover

DUCOP – Double Sided Control Panel

Sterilizable
Handle

Sterilizable
Handle

Wireless/Wired Control Panel



Disposable Handle Cover

Recorder

Converter
SDI to HDMI

Medical
Monitor
